Geometry to Region

## Geometry to Region

Generate a region in a geometric shape region of arbitrary shape, which can be used for subsequent required modules and can act as a mask

## Usage Method

![](/media/202601/2026-01-30_133517_5367620.15602713507143562.png)

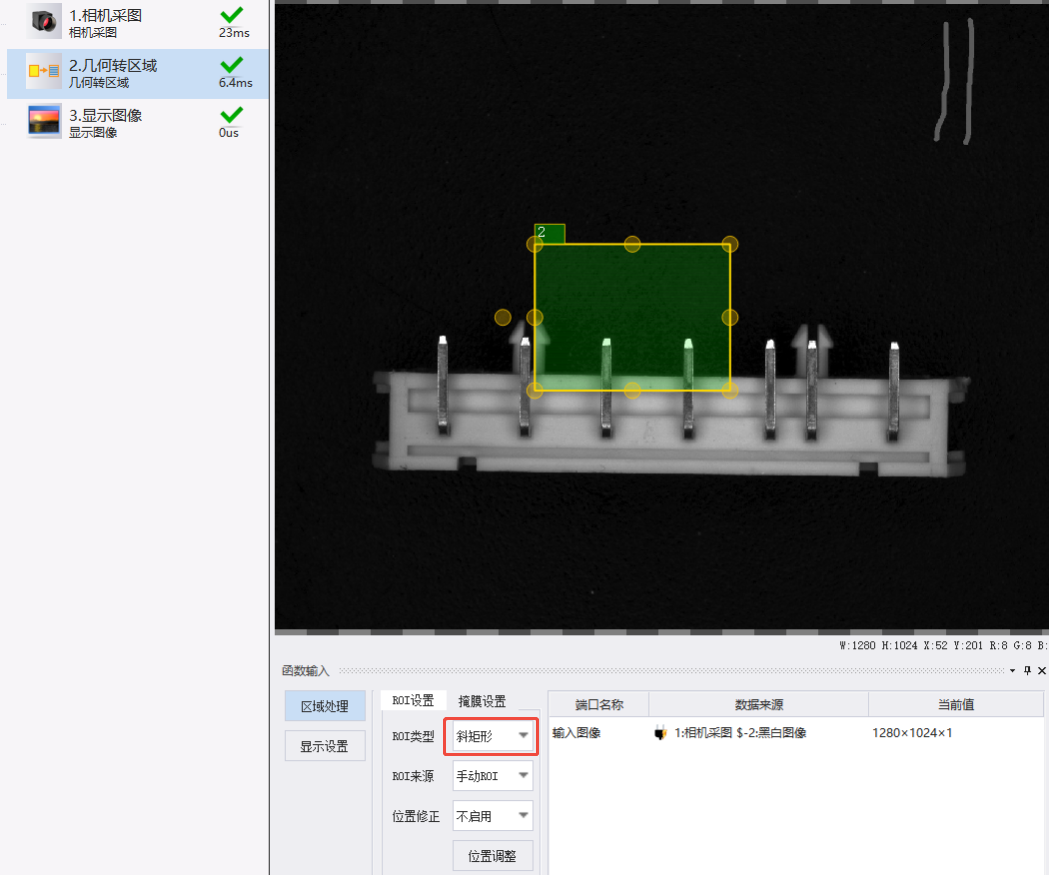

1. Add this module directly, and then select the desired geometric shape, such as regular rectangle, rotated rectangle, circle, ring, sector, polygon, etc. The shadow of the geometric shape region in the figure is the generated region.
2. Region processing. After generating the region, some morphological operations can be performed on the region as needed, such as erosion, dilation, opening and closing operations, etc.
3. Support mask setting to shield or only detect certain regions.
![](/media/202601/2026-01-30_134010_9646490.03474056388670821.png)

## Output Description

![](/media/202601/2026-01-30_134806_7327930.003938866862945312.png)

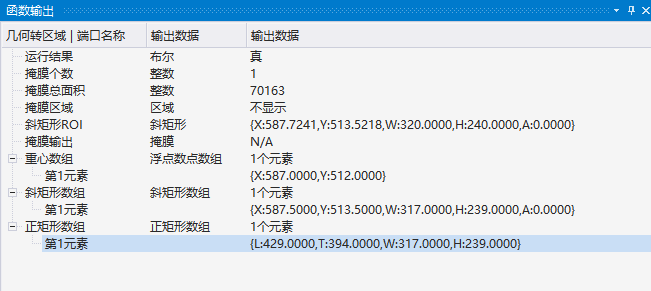

Running Result: Geometry to Region success outputs True, otherwise outputs False.
Mask Count: The number of masks converted from geometric shape generated regions.
Mask Total Area: The total area of geometric shape generated regions.
Mask Region: Geometric shape generated region output.
Rotated Rectangle ROI: Selected geometric shape output.
Mask Output: Output the set mask.
Center of Gravity Array: Array of centers of gravity of each region in the result of Geometry to Region.
Rotated Rectangle Array: Array of minimum bounding rotated rectangles of each region in the result of Geometry to Region.
Regular Rectangle Array: Array of minimum bounding regular rectangles of each region in the result of Geometry to Region.

---

Click here to jump to the corresponding Chinese manual page: [Geometry to Region](/doc/59)
